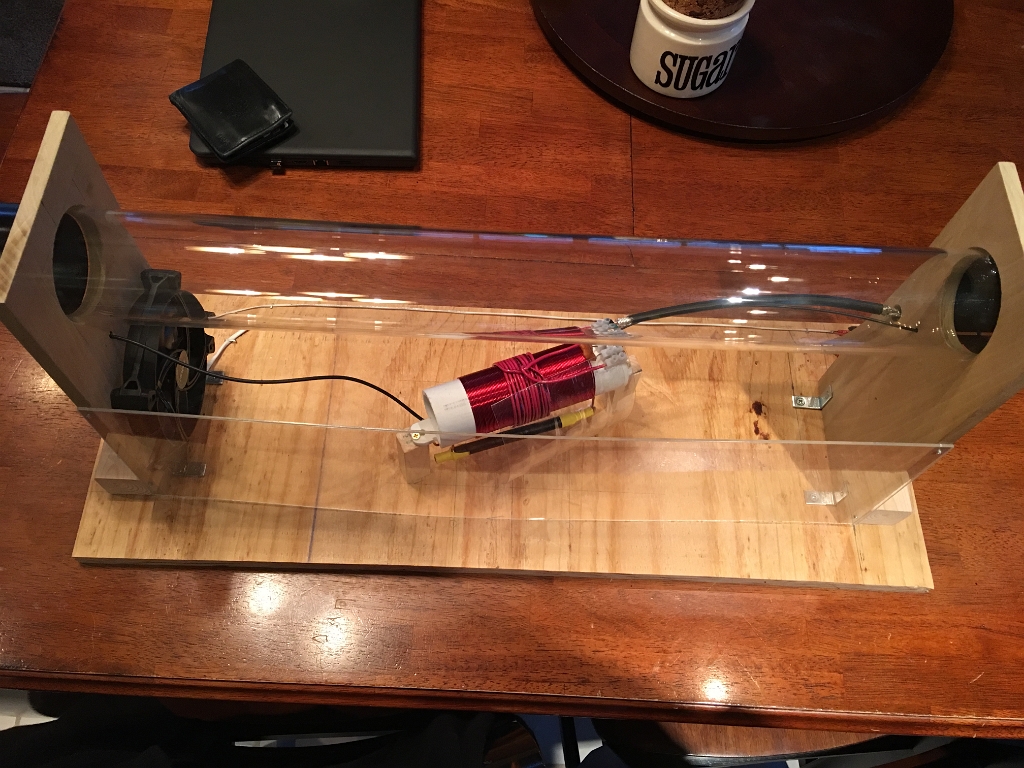

 1 Rebuilt LC31BAT coupler, Bill Cheb SSQ-BAT plasma tube in stand, with cooling fan. |

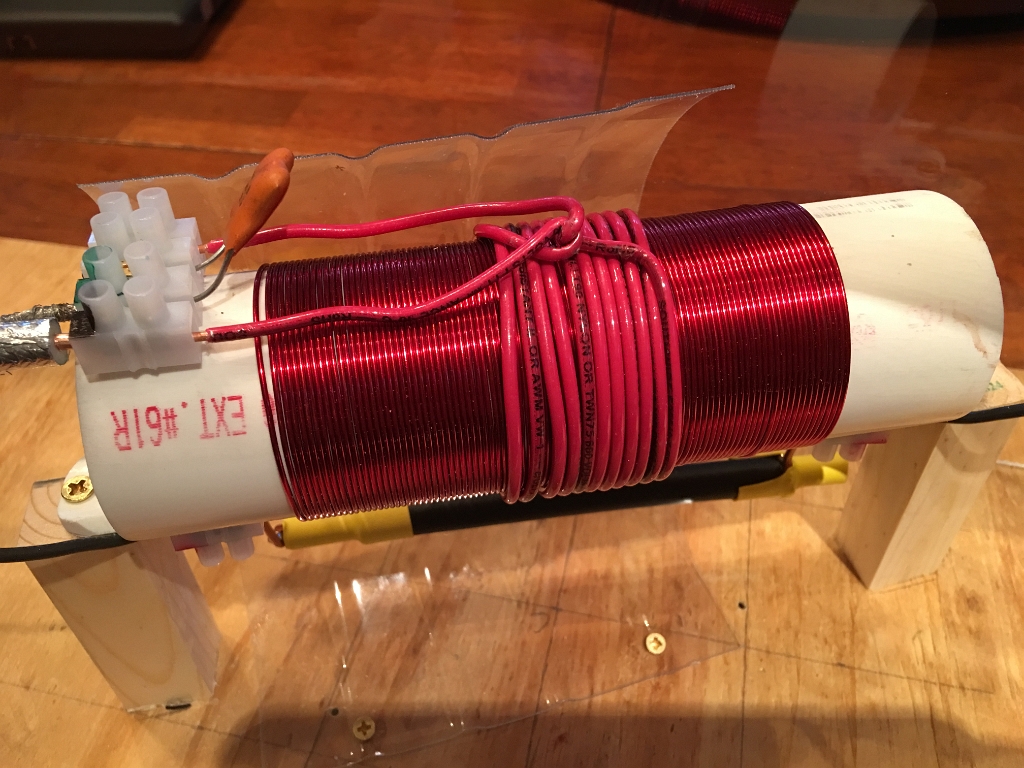

 2 Rebuilt LC31BAT coupler. |

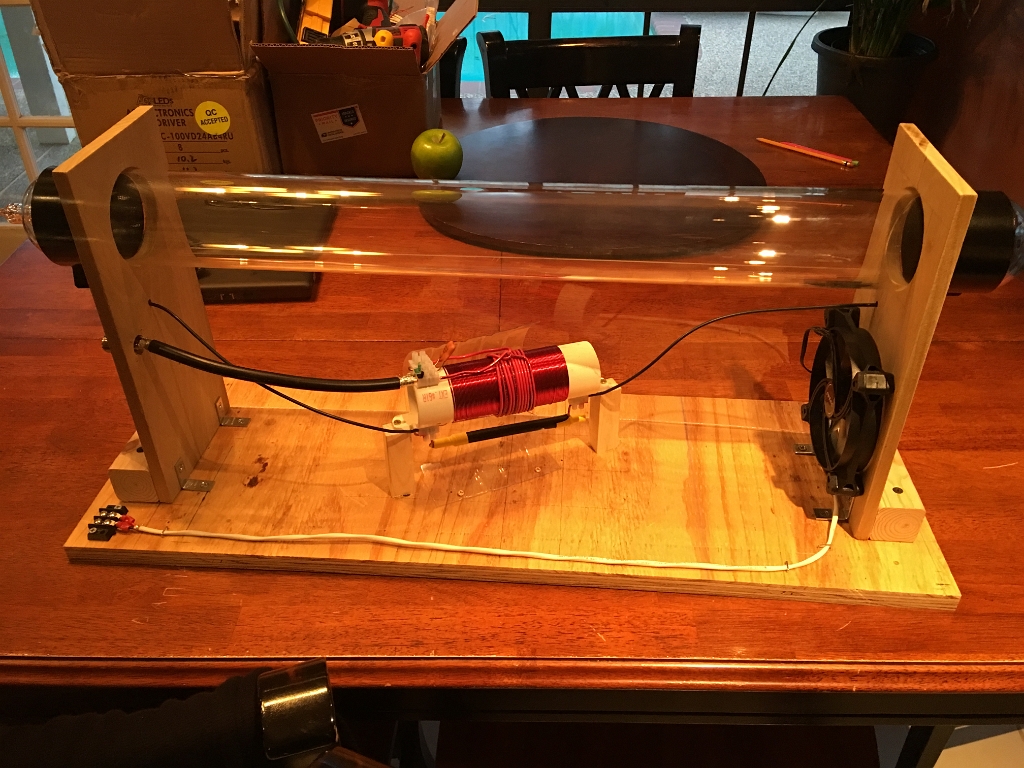

 3 Rebuilt LC31BAT coupler, Bill Cheb SSQ-BAT plasma tube in stand, with cooling fan. |

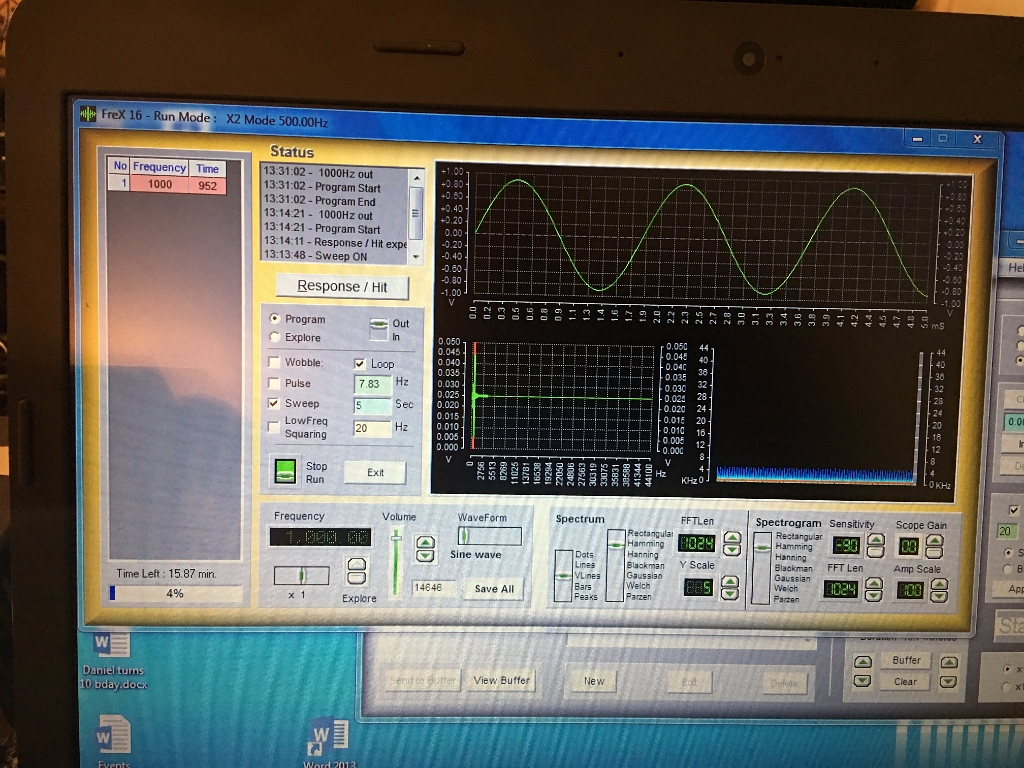

 4 FreX16 in operation running a frequency of 1000 Hz. |

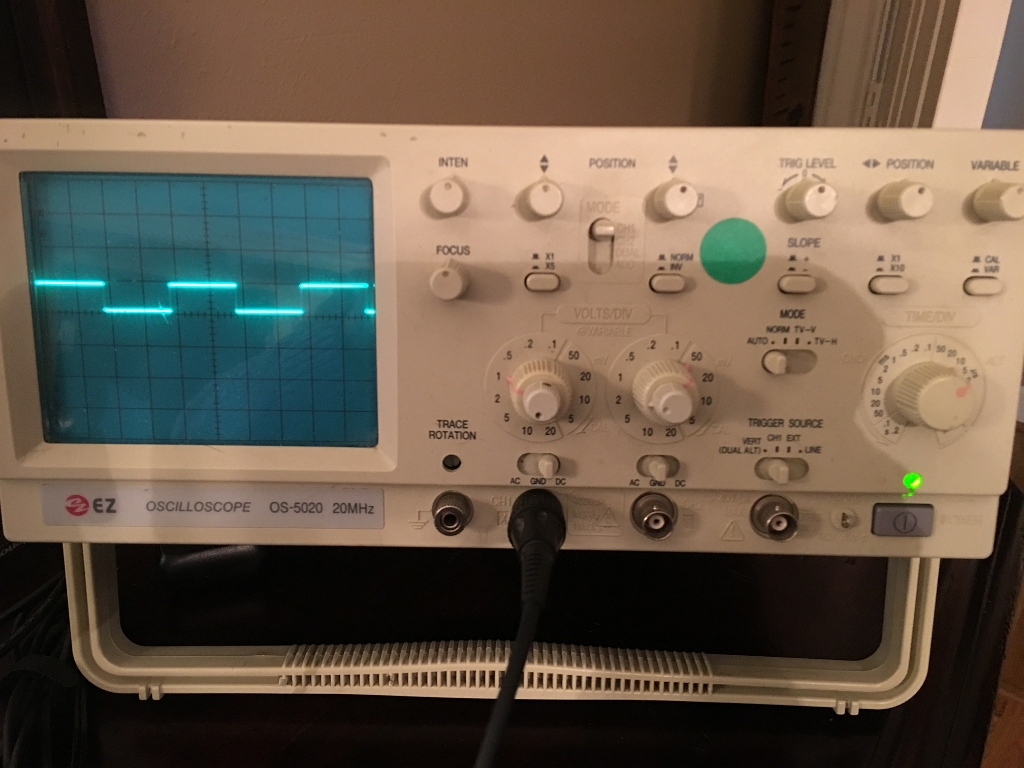

 5 The 1000 Hz sine wave from FreX16 after conversion to a square wave in the Spectrotek SPA5 amplifier. |

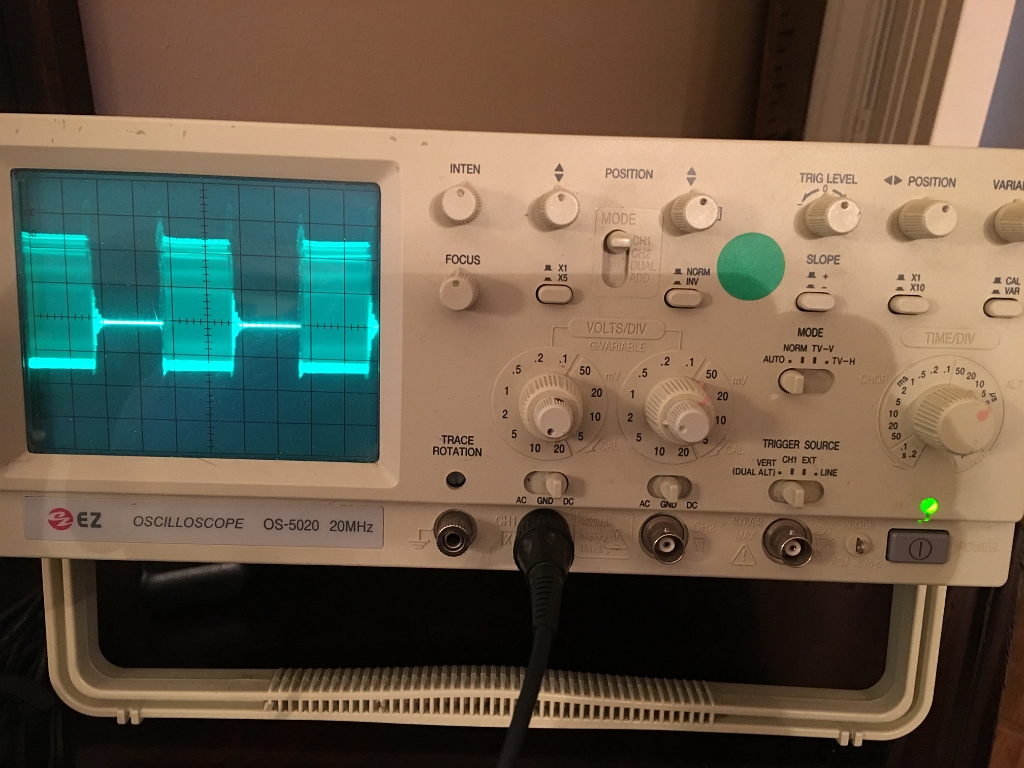

 6 The 1000 Hz modulated 3.1 MHz carrier wave from the output of the Spectrotek SPA5 amplifier. |

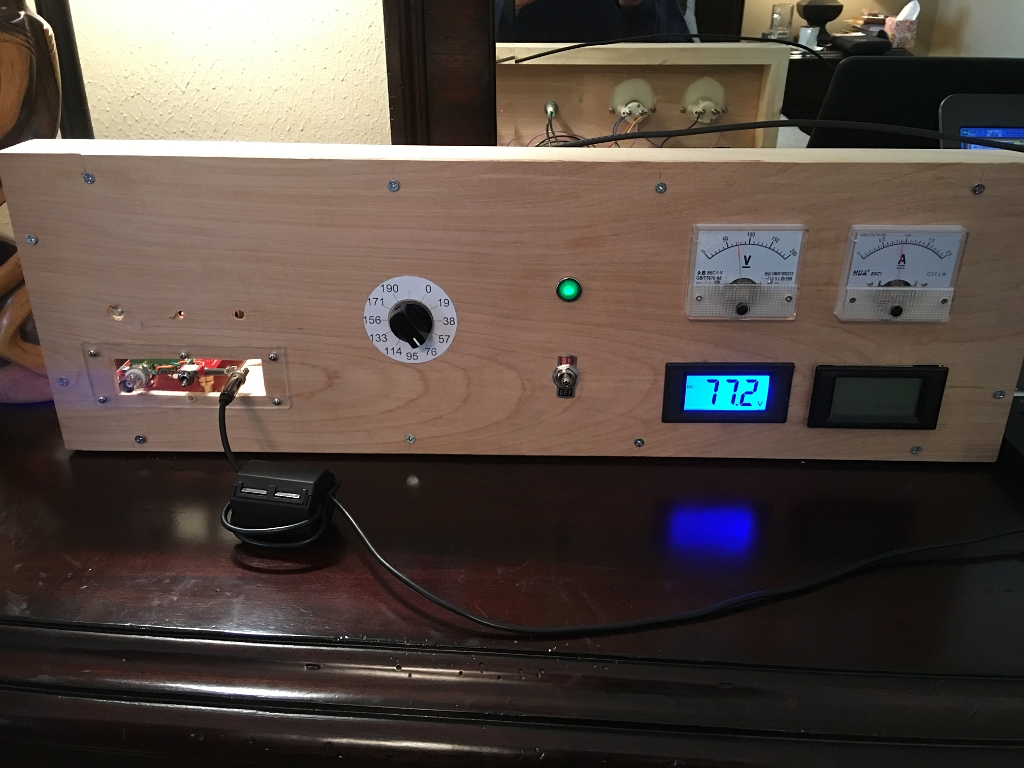

 7 This system is assembled in a wood and plastic case. |
|
