Spectrotek Services  Rife Plasma System Components

Products Order Page

Click on most pictures for a larger view

All prices are in US Dollars.

Information current as of 20 August 2020

A NOTE ABOUT SHIPPING COSTS: PayPal calculates shipping rates which may be higher than the actual shipping costs. For example, if you are ordering small items, the shipping cost may be less then the amount that PayPal calculates. Excess shipping charges will be refunded.

- - - QUICK LINKS - - -

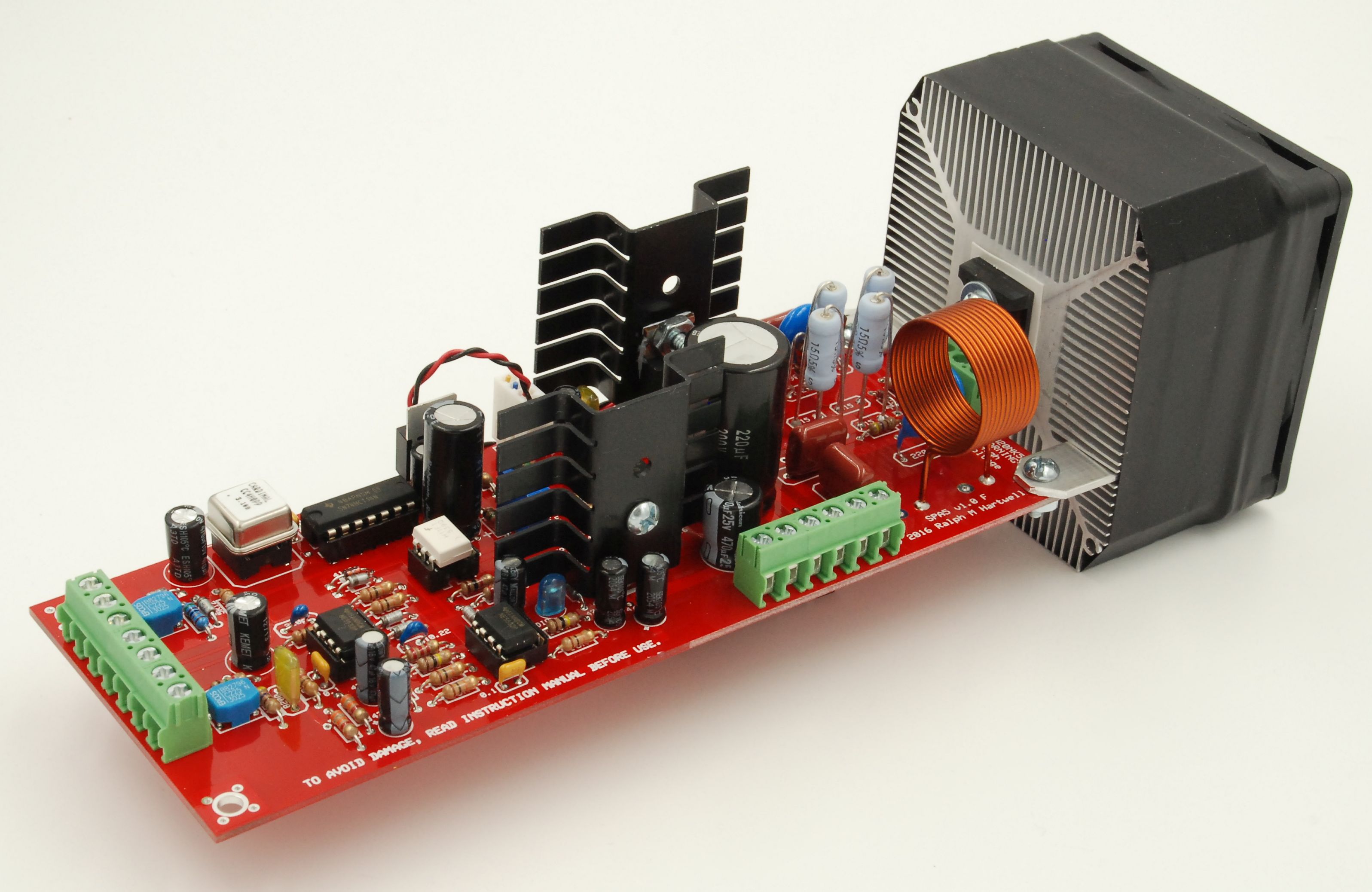

SPA5 Signal Processor - Amplifier for Rife Plasma Tube Amplifier

With HS2 Heat Sink & Fan

The SPA5 Integrated Processor - Amplifier

The SPA5 v1.0G is the "Do It All" plasma tube signal processor and amplifier.

The SPA5 is our best selling processor-amplifier.

The SPA4 is the most versatile plasma tube amplifier on the market today. The SPA5 accepts inputs from a wide range of signal sources, including laptop and desktop computers having a line level output or headphone jack, CD players, DVD players, MP3 players, Most cell phones, the UDB1108S, the Spooky2, the GB-4000, the F-165, F-175 and other F-series units, the PROGEN II 4050, or any other frequency generator that is capable of producing a square, sine or triangle wave output or a 5 volt, square wave audio  modulated 3.1 MHz signal.

The SPA5  is an improved and upgraded version of our original SPA4 v1.01 amplifier. Incorporating highly effective RF self-interference filtering, the SPA5 is much more resistant to disturbances caused by the electric field from the plasma tube. This ensures more stable operation of the SPA45during high power operation.

The SPA4 has been designed to provide researchers with an integrated audio signal processor and high power amplifier system capable of accepting an input signal from multiple frequency sources while providing enough output power at 3.1 MHz to operate large plasma tubes.

The powerful but quiet cooling fan mounted on the rugged HS2 heat sink allows the SPA5 to be operated at full power continuously.. A separate power supply for the cooling fan is not needed, because the SPA5 provides power for the fan.

The power amplifier MOSFET in the SPA5 may be easily and quickly replaced should the need arise. Simply loosen the three mounting screws of the MOSFET and replace the transistor, no soldering is required.

Two power supplies are required to operate the SPA5, one supply of +20 volts for the logic circuitry and cooling fan, and another of between +15 and +190 volts, depending on the type of plasma tube being used. Please refer to the operating manual for full technical details. A type LC31 coupler assembly and a 23 foot / 7 meter length of coaxial cable is required to connect the SPA5 to a plasma tube.

The standard carrier frequency oscillator of 3.1 MHz will be supplied with the SPA5unless you specify a different frequency at the time of your order. If you desire a different carrier frequency then please enter your choice of frequencies during the PayPal checkout process, or send an email to us at engineering@spectrotek.com and tell us what frequency you need.

SPA5 v1.0G- with HS2 heat sink, assembled and tested - $385.00

Please select one:



PA3 Rife Plasma Tube Amplifier With HS2 Heat Sink



PA3 v2.0 with HS2 heat sink, assembled and tested - $265.00

PA3 v2.0 Complete kit, parts & circuit board, but without HS2 heat sink - $140.00

PA3 v2.0 Blank Circuit board - $50.00

The PA3 amplifier is designed to be driven by a signal generator such as the UDB1108S which generates a duty cycle modulated square wave TTL output signal of 0 to +5 volts amplitude.

The PA3 may also be driven by any frequency generator that outputs an audio sine wave signal with a peak-to-peak amplitude of 4.5 to 7.5 volts.

The PA3 generates its own 3.1 MHz carrier signal. It is designed to be used with wide-range audio frequency generators.

The standard carrier frequency of 3.1 MHz will be supplied with the PA3 unless specify a different frequency at the time of your order.

Please enter your choice of frequencies during the PayPal checkout process, or send an email to engineering@spectrotek.com

Audio Modulation frequencies between 4 and 400,000 Hz may be used at full power. Higher modulation frequencies are usable at reduced power output.

The powerful but quiet cooling fan mounted on the rugged HS2 heat sink allows the PA3 to be operated at full power for as long as the researcher desires. A separate power supply for the cooling fan is not needed, because the PA3 provides power for the fan.

The power amplifier MOSFET in the PA3 may be easily and quickly replaced should the need arise. Simply loosen the three mounting screws of the MOSFET and replace the transistor, no soldering is required.

Two power supplies are required to operate the PA3, one supply of +20 volts for the logic circuitry and cooling fan, and another of between +50 to +175 volts, depending on the type of plasma tube being used. Please refer to the operating manual for full technical details.
Please select one:

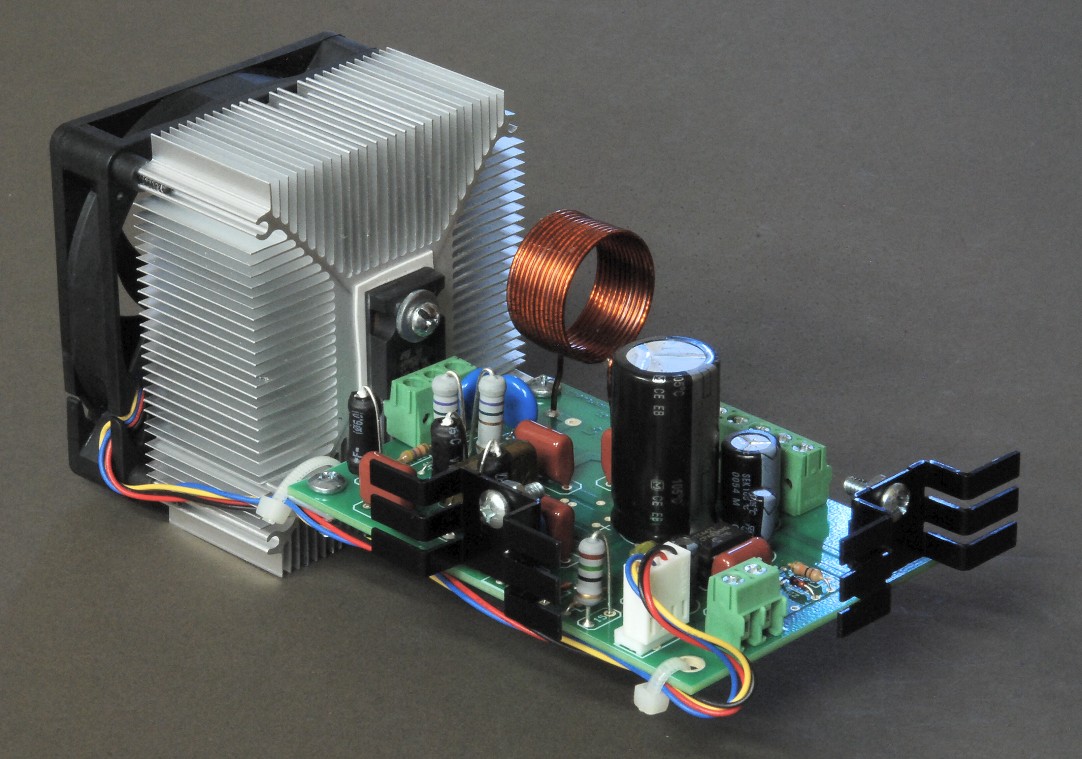

PA2 Rife Plasma Tube Amplifier With HS2 Heat Sink



PA2-HS2 Combination - $225.00

The PA2 plasma tube amplifier may be driven by the SSQ-2F v1.41 or later models of the GB-4000 frequency generator.

The PA2 plasma tube amplifier is designed to be driven by a SSQ-2F v1.41 processor when the SSQ-2F is set to output a TTL level (0 to +5 volt,) 3.1 MHz square wave square-wave duty-cycle modulated carrier. The PA2 may be driven by any other frequency generator that is capable of outputting a similar TTL carrier signal.

The PA2 may also be driven by any frequency generator (such as later models of the GB-4000) that outputs a 3.1 MHz sine wave carrier that is square-wave duty-cycle modulated, with a peak-to-peak amplitude of 4.5 to 5.5 volts.

NOTE: With most frequency generators that can also produce an audio signal in addition to a modulated 3.1 MHz carrier output, use of the PA3 amplifier will generally produce more satisfactory results.

The powerful but quiet cooling fan mounted on the rugged HS2 heat sink allows the PA2 to be operated at full power for as long as the researcher desires. A separate power supply for the cooling fan is not needed, because the PA2 provides power for the fan.

The power amplifier MOSFET in the PA2 may be easily and quickly replaced should the need arise. Simply loosen the three mounting screws of the MOSFET and replace the transistor, no soldering is required.

Two power supplies are required to operate the PA2, one supply of +20 volts for the logic circuitry and cooling fan, and another of between +50 to +175 volts, depending on the type of plasma tube being used. Please refer to the operating manual for full technical details.

Please select one:


PA1 Rife Plasma Tube Amplifier With HS2 Heat Sink

PA1-HS2 Combination - $175.00

The PA1 is designed to be driven by the SSQ-2F v3.110, v3.21 or v3.22. The PA1 increases the power output of the SSQ-2F v3.10 to a power level of between 300 to 500 Watts peak power. When using modulation duty cycles of between 0 to 100%, the PA1 will produce at least 300 Watts peak or continuous power output. For modulation duty cycles of between 1 to 50%, the PA1 can produce up to 500 Watts peak power output. These power levels are sufficient to operate even the largest plasma tubes.

The powerful but quiet cooling fan operates on 12 volts DC, and allows the PA1 to be operated at full power for as long as the researcher desires. The power amplifier MOSFET in the PA1 may be easily and quickly replaced should the need arise. Simply loosen the three mounting screws of the MOSFET and replace the transistor, no soldering is required.

The HS2 features a rugged solid aluminum core, measuring 30 x 30 x 28 mm, which provides a massive 25.5 cc of heat absorbing mass to rapidly remove the heat from the PA1. To dissipate the heat into the air stream provided by the cooling fan, a total of 108 fins with a surface area of 812 cm^2 or 125 in^2 extend into the airflow. The HS2 maintains a safe operating environment for the MOSFET on the PA1, ensuring stable operating conditions and high efficiency.

Please download and read the instruction manual for the PA1 before ordering.

Please select one:




Type LC31 - 3.1 MHz Link Coupler for Plasma Tubes

Complete LC31 Coupler Assemblies for Bill Cheb Plasma Tubes

 Please email us if you have any questions about a particular coupler.

The LC series of plasma tube couplers have been designed to work with all of our amplifiers. Using an LC coupler allows you to to efficiently feed RF power to your plasma tube while preserving signal quality.

The LC31 coupler system has been designed to perform properly with plasma tubes manufactured by Bill Cheb, such as the SSQ-PT, SSQ-ST, SSQ-BAT, the 4 inch, 5 inch and 8 inch Phanotron tubes, and the 7 inch x 18 mm Quartz Ar/He and Ne/Ar tubes. Other makes and models of plasma tubes may be used with these LC31 couplers, however it may be necessary to change the value of the series link capacitor or the coaxial tuning capacitor.

Starting with a tubular PVC coil form, a heavy-enamel insulated 18 gauge copper wire secondary coil is wound directly on the PVC coil form. This coil will connect to your plasma tube. A primary winding of 14 gauge PVC insulated wire is then wound over the center of the secondary coil. The primary coil accepts the RF power from the amplifier through a length of coaxial cable. High-quality Mica capacitors tune of the primary winding for maximum power transfer. Some LC couplers have a high voltage coaxial capacitor connected across the terminals of the secondary coil. This capacitor tunes the secondary coil to match your plasma tube. Screw terminal connector blocks are used for all electrical connections to the LC coupler. There are no wires to solder.

To use the LC couplers, simply connect one end of a 23 foot / 7 meter length of 50 ohm coaxial cable to the RF OUT connection of your amplifier. Connect the other end of the coaxial cable to the input terminals of the LC coupler. Connect two insulated wires from the output terminals of the LC coupler to the electrodes of your plasma tube. That's it! Now, power up your system. No tuning is required.

If you are using a Bill Cheb Original 2 inch x 26 inch Super Tube, you should purchase the model LC31OST coupler assembly which comes with the model TCR (red) coaxial capacitor installed. NOTE - The 2 inch "Original Super Tube" is a special order tube, and is not generally recommended for use due to the high drive power required. Note that this coupler does NOT work with the SSQ-ST plasma tube.  For the SSQ-ST, please purchase the LC31-ST coupler.

Tto allow the plasma tube to be placed at some distance away from the computer and control electronics, the LC coupler system has been designed to operate with a 23 foot / 7 meter length of 50 ohm coaxial cable between the output of the amplifier and the input of the LC31 coupler.

CAUTION: the use of connecting cables shorter than 23 feet / 7 meters in length may cause damage to the amplifier!

Please refer to the instruction manual for further details.

When ordering any LC31 coupler. please be sure to send us an email or place a note on your order and let us know exactly which plasma tube you will be using so that we can be sure to send you the right coupler for your plasma tube
Please select plasma tube to be used:

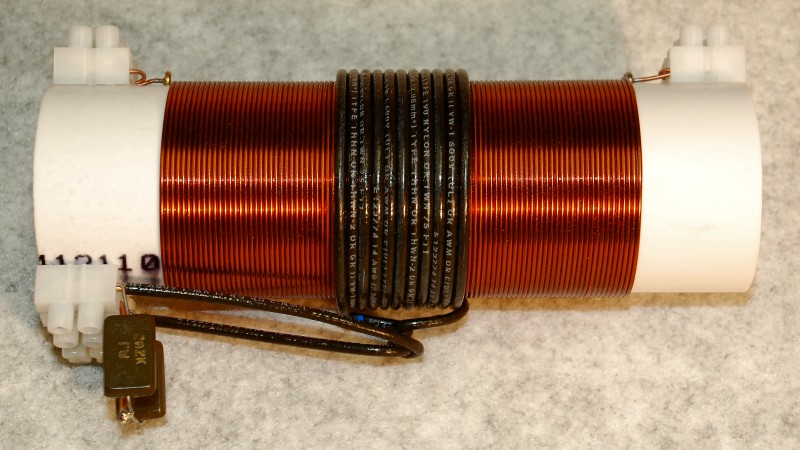

Coil Assembly only for the LC Coupler System

LC31 Coil assembly - $75.00

For those researchers who wish to assemble their own custom plasma tube couplers, we offer the LC 31 coil assembly.

This is our standard LC coupler coil assembly, but supplied without the coaxial tuning capacitor. It does include the two Mica link-tuning capacitors. These may be removed and replaced with different capacitors for tuning if desired. The standard operating frequency of the LC31 coil assembly is 2.5 to 3.5 MHz.

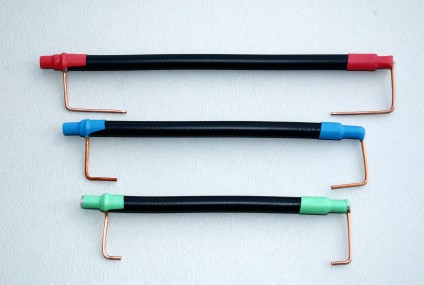

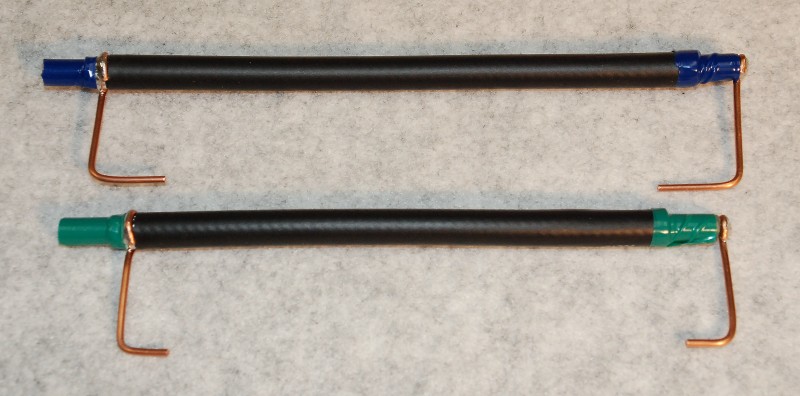

TC series Coaxial Tuning Capacitors for the LC31

TCP - TCS - TCR - TCBA - Coaxial tuning capacitors for the LC3, $20.00 each.

Your LC31 coupler system can operate with these Bill Cheb tubes by using the appropriate tuning capacitor: The 8inch Phanotron tube, the SSQ-PT or the SSQ-ST plasma tubes, or the Original Cheb Super Tube.

All you need to do is change the TC coaxial tuning capacitor on the LC coupling assembly and change one jumper on the input terminal block of the LC coupler.

If you are ordering a complete LC31 coupler, then you do not need to order one of these capacitors unless you want to be able to use it with a different plasma tube. The LC31 couplers are furnished with the proper coaxial tuning capacitor.

* TCS (green) works with the Cheb SSQ-PT and the Cheb 7inch x 18mm Quartz plasma tubes.

* TCP (blue) works with the Cheb SSQ-ST and the Cheb 5inch and 8inch Phanotron plasma tubes

* TCBA (yellow) works with the Cheb 3inch x 33inch SSQ-BAT plasma tube.

* TCR works with the Cheb Original 2 inch x 27 inch "Super Tube" The TCR is not for use with the SSQ-ST plasma tube.

Select type of Plasma Tube the Coupler will be be used with:


Type "E" Electrodes for SSQ Plasma Tubes

Electrode Types E1 (left) and E1W (right) for the Bill Cheb SSQ-PT Plasma Tube

These are specially treated, heat-dissipating copper electrodes for the Bill Cheb SSQ Plasma tubes and the Bill Cheb 2 inch x 26 inch Original Super Tube.

Electrode type E1, (45 mm) without wires, for Cheb SSQ-PT, $25.00 per pair.

The type E1 electrode is furnished without a connecting wire, but it does have a hole through one tab of the electrode where a wire may be either soldered in place or fastened with a nut and bolt.

Electrode type E1W, (45 mm wide) with wires, for Cheb SSQ-PT, $28.00 per pair.

The type E1W electrode is furnished with a connecting wire of the correct length to connect to the type LC31 link coil coupler network.

Electrode type E2, (48 mm wide) without wires, for Cheb SSQ-ST, $30.00 per pair.

The type E2 electrode is furnished without a connecting wire, but it does have a hole through one tab of the electrode where a wire may be either soldered in place or fastened with a nut and bolt.

Electrode type E2W, (48 mm wide) with wires, for Cheb SSQ-ST, $33.00 per pair.

The type E2W electrode is furnished with a connecting wire of the correct length to connect to the type LC31 link coil coupler network.

Electrode type E3, (50 mm wide) without wires, for Cheb 2 inch x 27 inch "Original Super Tube," $30.00 per pair. Will not fit on the SSQ-ST plasma tube.

The type E3 electrode is furnished without a connecting wire, but it does have a hole through one tab of the electrode where a wire may be either soldered in place or fastened with a nut and bolt.

Electrode type E3W, (50 mm wide) with wires, for Cheb 2 inch x 27 inch "Original Super Tube," $33.00 per pair. Will not fit on the SSQ-ST plasma tube.

The type E3W electrode is furnished with a connecting wire of the correct length to connect to the type LC31 link coil coupler network.

Electrode type E4, (50 mm wide) without wires, for Cheb SSQ-BAT," $36.00 per pair.

The type E4 electrode is furnished without a connecting wire, but it does have a hole through one tab of the electrode where a wire may be either soldered in place or fastened with a nut and bolt.

Electrode type E4W, (50 mm wide) with wires, for Cheb SSQ-BAT," $39.00 per pair.

The type E4W electrode is furnished with a connecting wire of the correct length to connect to the type LC31 link coil coupler network.

Electrode type E5, (nn mm wide) without wires, for Cheb 7 inch Mini Quartz Tube," $nn.00 per pair. NOT YET AVAILABLE FOR PURCHASE

The type E5 electrode is furnished without a connecting wire, but it does have a hole through one tab of the electrode where a wire may be either soldered in place or fastened with a nut and bolt.

Electrode type E5W, (nn mm wide) with wires, for Cheb 7 inch Mini Quartz Tube," $nn.00 per pair. NOT YET AVAILABLE FOR PURCHASE

The type E5W electrode is furnished with a connecting wire of the correct length to connect to the type LC31 link coil coupler network.

Excessive heat is the most common cause of Plasma tube failure. This type of damage will typically result in contamination of the gas mixture inside the tube, causing an unwanted color shift in the discharge and/or poor performance. The process of ionizing the gas causes the glass wall of the tube directly under the electrodes to become very hot. Using ordinary bare copper or aluminum electrodes may result in damage to the tube wall due to overheating if high powers are used or if the electrode is too small for the power level being used. Untreated copper or aluminum electrodes do not effectively remove excess heat from the plasma tube.

For complete technical details and correct use of the Type "E" electrodes, please download the instruction manual.

Please Select Electrode Options

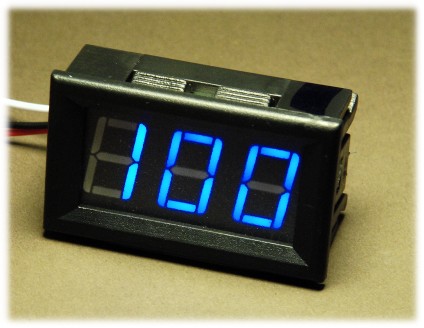

Duty Cycle / Square Wave Balance Meter - M1D for the SPA4 or the SSQ-2F v3.22

NOT for use with the SSQ-2F v1.41 or v3.10 - Model M1A is required for SSQ-2F v1.41 or v 3.10

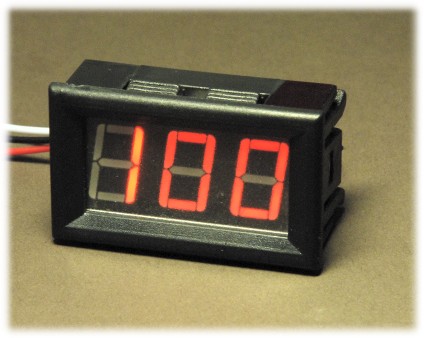

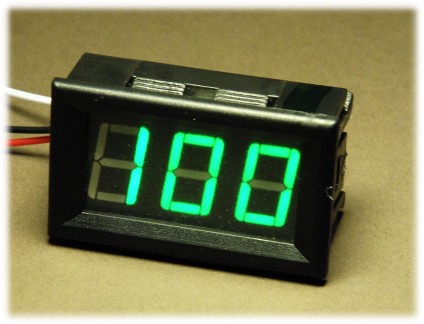

Square Wave Balance Meter M1D Red display Square Wave Balance Meter M1D R Square Wave Balance Meter M1D R

M1D - Available with Red, Green or Blue display - $23.00 Please select your preferred display colour at the PayPal checkout.

The M1D meter connects directly to the SPA4 or the SSQ-2F v3.22 Controller Board and allows the operator to monitor the percentage of square wave modulation of the modulated RF carrier without using an oscilloscope. Through-hole panel mounting. Panel hole size cutout is 26 mm x 46 mm (1.03 x 1.8 in.) Depth behind panel approximately 28 mm (1.09 in.)

Display Colour


Duty Cycle / Square Wave Balance Meter - M1A for SSQ-2F v1.41 or v 3.10

NOT for use with the SPA4 or the SSQ-2F v3.22 - The Model M1D is required for the SPA4 or the SSQ-2F v3.22

Square Wave Balance Meter M1

M1A - $19.00

The M1 meter connects directly to the SSQ-2F v1.41 or v3.10 Controller Board and allows the operator to monitor the percentage of square wave modulation of the modulated RF carrier without using an oscilloscope. Mounting bracket included.

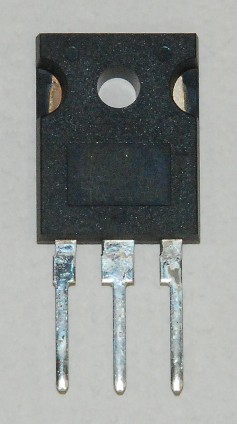

STW20NK50Z

$6.25

Replacement high-power MOSFET transistor for the PA1, PA2, PA3 or SPA4.

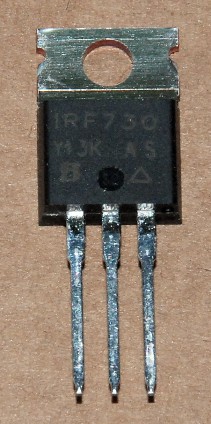

IRF730 MOSFET Power Transistor

$2.50

This is the power MOSFET transistor used in the SSQ-2F v3.10, v3.22 and the PA2 amplifier.

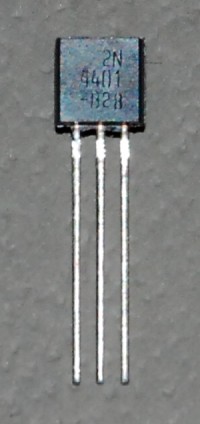

2N4401

2N4401 - Q1

$0.80

NPN general purpose amplifier transistor, designed as a medium power amplifier and switch requiring collector currents of up to 500 mA.



MC7812CP

MC7812CP - U6

$1.25

Three pin, positive 12 volt regulator, 1 Ampere.

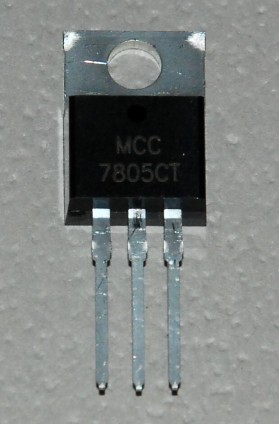

MCC7805CT

MCC7805CT - U6

$1.25

Three pin, positive 5 Volt regulator, 1 Ampere.

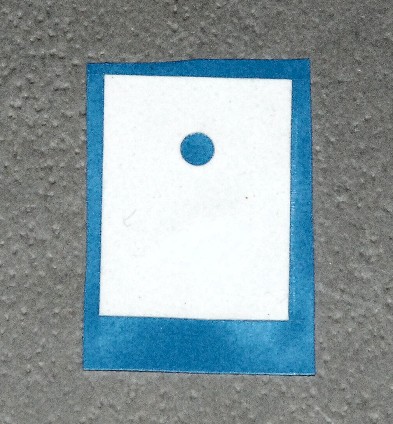

High Performance Thermal Pad for the STW20NK50Z

PAD-4 - $1.50

Replacement high performance thermal pad for the PA1, PA2, PA3, or SPA4. This is required to be placed between the STW20NK50Z MOSFET and the heat sink. This transistor may also be used with the IRF730 used in the SSQ-2F.

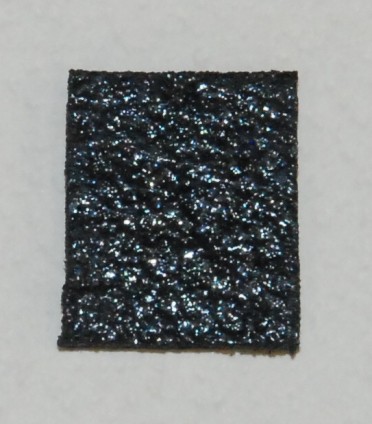

Rubber Pressure Pad

PAD-3 - $1.00

Replacement rubber pressure pad for use in clamping the STW20NK50Z to the heat sink. (Used in early units only.)

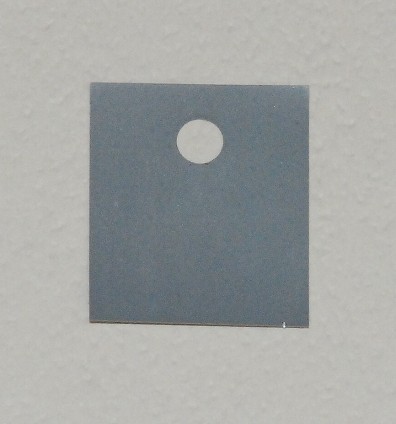

Thermal Pad for IRF730 Only

PAD-1 - $1.20

This thermal pad may be used between the IRF730 and an external heat sink when it is desired to electrically insulate the IRF730 from the heat sink. This thermal pad allows heat to pass from the IRF730 to the heat sink. This heat sink should not be used with the STW20NK50Z in the PA1. Please use PAD-4 for the STW20NK50Z. If desired, PAD-4 may also be used with the IRF730 for better thermal performance.

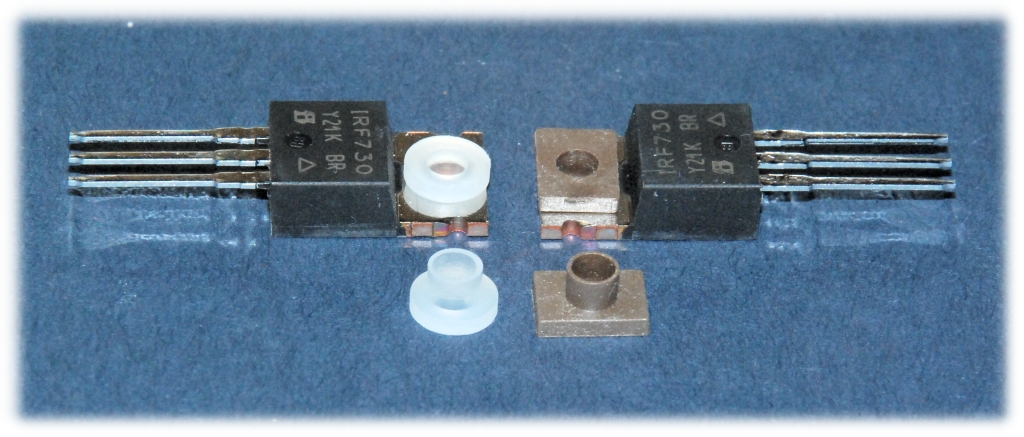

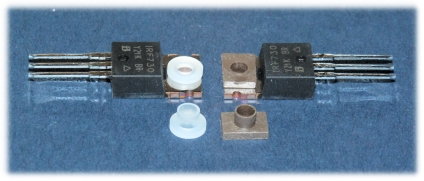

Washer-1 & Washer-2, Insulated Shoulder Washers for TO-220 Devices

TO-220 Clamp Washers

Washer-1- $0.75, Washer-2 - $0.25

Washer-2 left side of picture; Washer-1 right side of picture. (Transistors are NOT included with washers.)

These shoulder washers are used to securely mount TO-220 devices to a heat sink. They provide mechanical clamping for the TO-220 device and electrical insulation for the mounting hardware. Please note that the use of either PAD-1 or PAD-4 is also required for proper insulation of the TO-220 device from the heat sink.

Washer-1 is a general purpose, high temperature, shoulder washer suitable for mounting TO-220 devices to heat sinks. Washer-1 is made from 40% glass filled Polyphenylene Sulfide PPS. It is rated for continuous operation at temperatures of up to 260 C / 500 F. It is rectangular in shape to provide excellent clamping action.

Washer-2 is a general purpose, moderate temperature, round shoulder washer suitable for mounting TO-220 devices to heat sinks. It is the type that you usually see in computer power supplies and audio amplifiers. Washer-2 is made from 30% glass fiber reinforced Nylon 6/6 GF-30. It is rated for continuous operation at temperatures up to 170 C / 355 F.

Both of these washers have the insulating tube for the mounting screw slightly longer than the thickness of the TO-220 device metal tab. That allows the insulating tube of the washer to extend inside of a drilled through hole in the heat sink to keep the TO-220 device mounting screw centered in the mounting hole. If you require that the tube of the washer is flush with the back side of the TO-220 device, then you simply insert the washer through the TO-220 device tab and use a razor blade or a sharp knife to trim off the excess part of the tube.

Washer Type

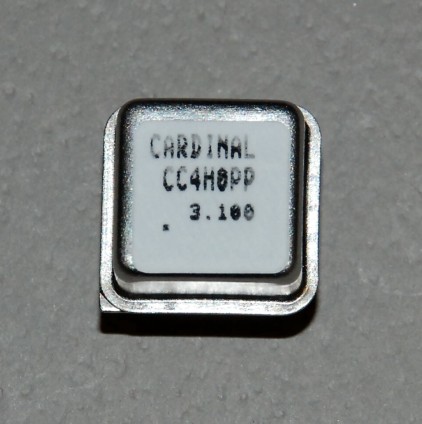

Oscillator Module - U4

3.1 or 3.3 MHz Carrier Oscillator Module U4

Standard oscillator frequencies are 3.1 or 3.3 MHz - $16.00 each

Custom frequencies are available from 1.0 to 133.0 MHz for the same price.

If you wish to place an order for a special frequency oscillator, please select "CUSTOM FREQUENCY" in the pull-down menu. When you get to the PayPal check out, please enter the frequency desired.

If you have any questions, please send an email to engineering@spectrotek.com. In your email please specify the desired quantity and frequency of each oscillator.

The PDF Data sheet for these oscillator modules may be downloaded HERE.

Please Select Frequency

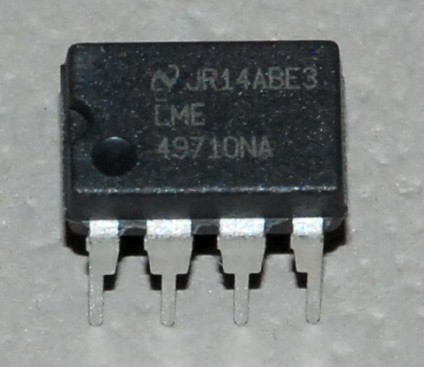

LME49710NA

LME49710NA - U1

$3.75

High-speed special-purpose linear amplifier module with wide-band response and signal accuracy.



74HCT14N

74HCT14N - U2

$1.20

14 pin, CMOS, Hex Inverting Schmitt Trigger buffer.

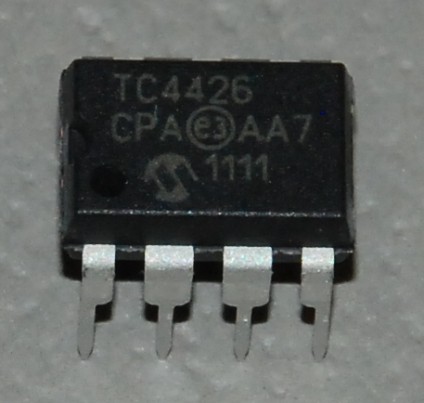

TC4426CPA

TC4426CPA - U3

$2.50

Dual High-Speed Power MOSFET driver .



TC4427CPA

TC4426CPA - U3

TC4427CPA - $2.50

Dual High-Speed Power MOSFET driver. (TC4426 shown; both devices are identical in size.)

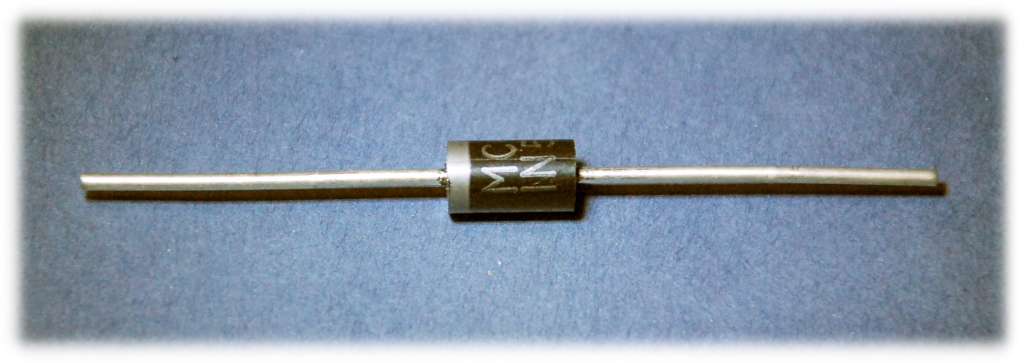

1N5408 General Purpose Rectifier Diode

1N5408 Diode

1N5408- $0.35

This is a general purpose high voltage diode rated at 1,000 volts and 3.0 amperes.

The 1N5408 may be used for the protection diodes that are required to be placed across each of the individual laptop computer power adapters if you are using them to construct a high voltage power supply for the SSQ-2F, the PA1 or the PA2 amplifier..

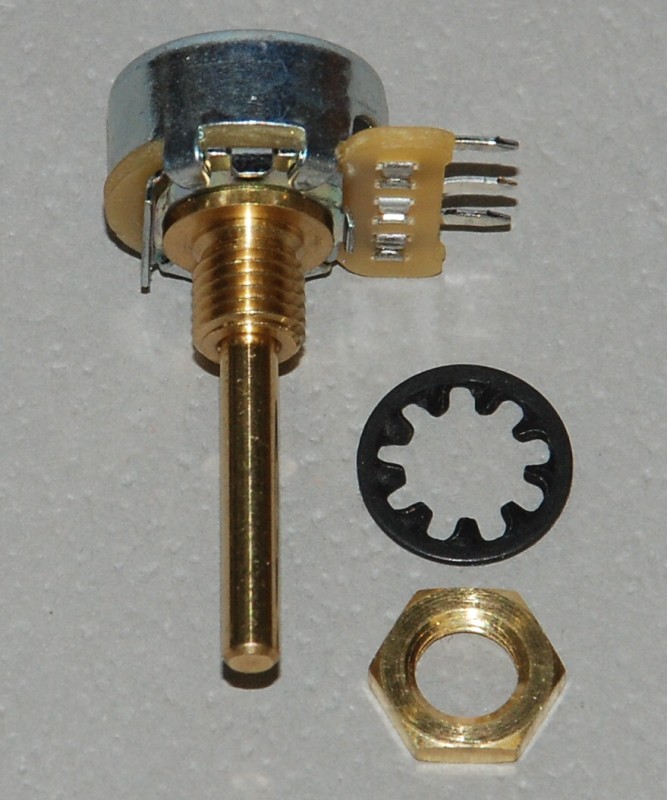

Audio Gain Potentiometer - R2

Audio Gain Potentiometer R2

$5.00

A high quality 100 K Ohm linear resistance potentiometer. 1/8 inch diameter x 3/4 inch long round brass shaft. 270 degree rotation. Includes mounting hardware.



510 Ohm 2 Watt Metal Film Resistor

$0.35

Low inductance resistor for assembling a 20 watt 50 Ohm dummy load for use in Contact Adapter circuits. Ten of these resistors are required to assemble the dummy load. Note that one L1 inductor is also required for the Contact Adapter circuit.



75 Ohm 2 Watt Metal Film Resistor

$0.35

Low inductance resistor for general purpose use.



7.5 Ohm 2 Watt Metal Film Resistor

$0.35

Low inductance resistor used in the gate drive circuit of the PA1, PA2, PA3, or SPA4. Two of these resistors are required with any of these amplifiers.

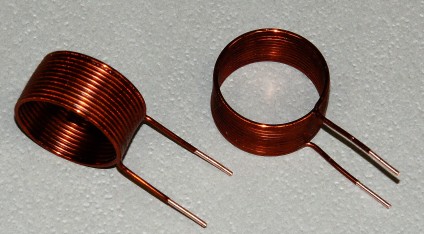

3.3 uHy Air Core Inductor for the PA1, PA2, PA3, or SPA4

L3 - $10.00

Replacement energy storage inductor for the PA1, PA2, PA3, or SPA4. Wound with 200° C rated enameled copper wire, plastic coated for mechanical stability.

Note: The photo shows two views of the coil, but only one is required for the amplifier. You will receive one coil in your order.



4.7 uHy Ferrite Core Inductor

$2.50

Used in the SSQ-2F v3.22 and the PA1, PA2, PA3, or SPA4.

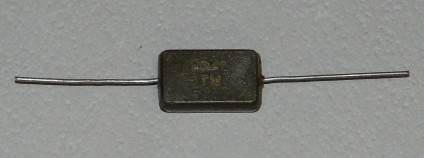

2200 pF 500 Volt Mica Capacitor

$5.50

Replacement low-loss Mica RF capacitor used in the gate drive circuit of the PA1, PA2, PA3, or SPA4.



220 pF 50 Volt Disc Ceramic Capacitor

$0.55

Replacement low-loss capacitor for all versions of the SSQ-2F and the SPA4.



1000 pF 1000 Volt Disc Ceramic Capacitor

$0.55

Replacement low-loss capacitor for the output circuit of the SSQ-2F v3.10, 3,21 v3.22, and the driver circuit of the PA1, PA2, PA3, and SPA4.

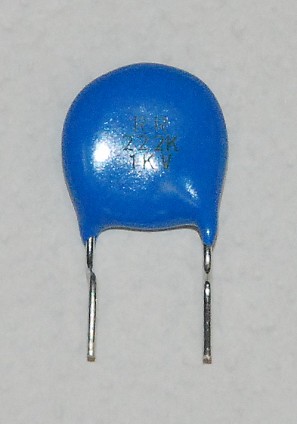

2200 pF 1000 Volt Disc Ceramic Capacitor

$0.55

Replacement low-loss capacitor for the output circuit of the PA1, PA2, PA3, or SPA4.

Two of these capacitors are required in each of these amplifiers.

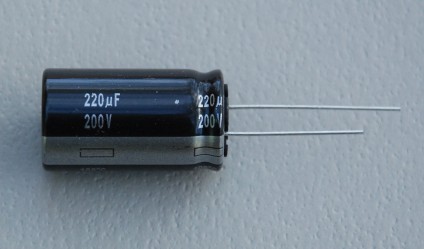

Electrolytic Filter Capacitor

Heat Sink - HS-1

220 uF 200 VDC Electrolytic Capacitor- $4.75

A high-quality electrolytic capacitor. This capacitor is suitable for installation across the DC power input of the early versions of the PA1 amplifier to prevent ripple on the RF output from the amplifier due to power supply instability.

This capacitor is rated at 220 µF at 200 V DC. Temperature rating is 105°C.



BNC Female Chassis Connector - BNC-1

SW1 PICTURE SOON

$3.75

BNC female chassis coaxial cable connector that mounts in a single 3/8 inch diameter hole. Solder terminals on rear of connector..




BNC Male Cable Connector - BNC-2

SW1 PICTURE SOON

$1.25

BNC male "Twist-on" cable connector - no soldering required. Fits type RG-58/U coaxial cable with an outer diameter of 0.172 inches / 45.37 mm.

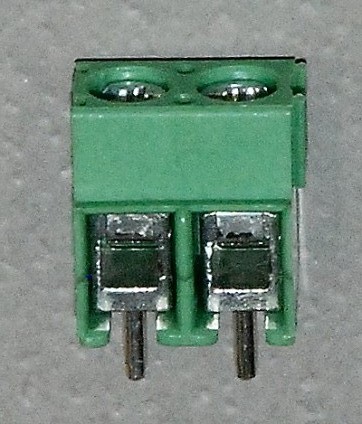

2-Pin Circuit Board Connector - TBLOCK-2

$0.50

This connector solders into two holes in your circuit board. It allows you to insert wires into the side of the connector and fasten them by tightening the screws in the top of the connector.


3-Pin Circuit Board Connector - TBLOCK-3

$0.75

This connector solders into three holes in your circuit board. It allows you to insert wires into the side of the connector and fasten them by tightening the screws in the top of the connector.



Heat Sink - HS-1

Heat Sink - HS-1

$2.00

General-purpose, vertical mount, bolt-on heat sink, suitable for most TO-220 style devices. Will dissipate about 4 watts at room temperature.



Heat Sink - HS-3

HS3 PICTURE SOON

$1.00

General-purpose, vertical mount, bolt-on heat sink, suitable for most TO-220 style devices. Will dissipate about 2 watts at room temperature.



RG – 58/U Coaxial Cable

RG-58/U

RG-58 - $0.55 /per foot

This is high quality American manufactured coaxial cable.

Type RG-58/U cable features a solid copper core and solid polyethylene insulation. The shield braid is tin coated 100% woven copper. The outer jacket is black ultraviolet resistant PVC.

This cable are suitable for connecting the output of the SSQ-2F V3.22, the PA1, or the PA2 amplifiers to the 3.1 MHz Link Coil Coupler to drive your plasma tube. The recommended length to use is 23 feet. Type RG-58/U cable may also be used for the connection between the SSQ-2F v3.22 and the input to the PA1 amplifier. Priced per foot.



RG-213 Coaxial Cable

RG-213/U

RG-213 - $1.20 / per foot

This is high quality American manufactured coaxial cable.

Type RG-213 cable features a 7-strand copper core and solid polyethylene insulation. The shield braid is 100% woven copper. The outer jacket is black ultraviolet resistant PVC.

This cable are suitable for connecting the output of the PA1, PA2 or the PA3 amplifier to the 3.1 MHz Link Coil Coupler to drive your plasma tube. The recommended length to use is 23 feet. Priced per foot.



11 Position Rotary Switch with Knob- RS11

RS11

$6.25

This is a sturdy rotary switch, suitable for use when constructing your power supply using a laptop computer power adapters.

This switch is rated at 150 V between contacts with a current carrying capacity of 5 A. The switch mounts through a single 0.375 inch / 9.52 mm diameter hole. The shaft is 0.25 inches / 6 mm diameter. The shaft length is 0.4 inches / 10 mm.



Toggle Switch - SW1

SW1 PICTURE SOON

Single Pole Double Throw (ON-ON) Toggle Switch - $1.25

This is a sturdy rotary switch, suitable for use when constructing your power supply using a laptop computer power adapters.

This switch is rated at 150 V between contacts with a current carrying capacity of 5 A. The switch mounts through a single 0.375 inch / 9.52 mm diameter hole. The shaft is 0.25 inches / 6 mm diameter. The shaft length is 0.4 inches / 10 mm.



Toggle Switch - SW2

SW2 PICTURE SOON

Single Pole Double Throw (ON-OFF-ON) Toggle Switch - $1.25

This is a sturdy rotary switch, suitable for use when constructing your power supply using a laptop computer power adapters.

This switch is rated at 150 V between contacts with a current carrying capacity of 5 A. The switch mounts through a single 0.375 inch / 9.52 mm diameter hole. The shaft is 0.25 inches / 6 mm diameter. The shaft length is 0.4 inches / 10 mm.















Power Adapter - A1

A1 Power supply

A1 - $5.00

(NOTE - If you are ordering the SSQ-2F V3.22, then do NOT order this power adapter - it will not work with the SSQ-2F V3.22.)

An AC to DC adapter block ("Wall-Wart") suitable for testing or powering the SSQ-2F. Input is 120 VAC 60 Hz, 6 watts. Output is rated at 15 VDC @ 150 mA, unfiltered.

This adapter plugs into a standard North American mains power outlet. The DC output cord is 6 feet long and it is terminated with a standard 2.5 mm phone plug, positive tip.

You will need to cut off the power plug and fit the end of the power cord to the SSQ-2F power connector.

My tests show that the actual output voltage drops to the minimum required to operate the SSQ-2F at duty cycles above 70%. This is a current limited power supply. This means that should an accidental short circuit occur, the SSQ-2F should not be damaged.

The bad news is that this is NOT a filtered power supply. In order to use this power supply with the SSQ-2F, you must add a 4700 uF 25 Volt electrolytic filter capacitor across the DC output of the power supply. The good news is that it is cheap.




Go to our home page.



This web site and all contents including pictures, text and diagrams is Copyright © 2012-2020 by Ralph M Hartwell.
.
