Equipment Photos From Our Customers

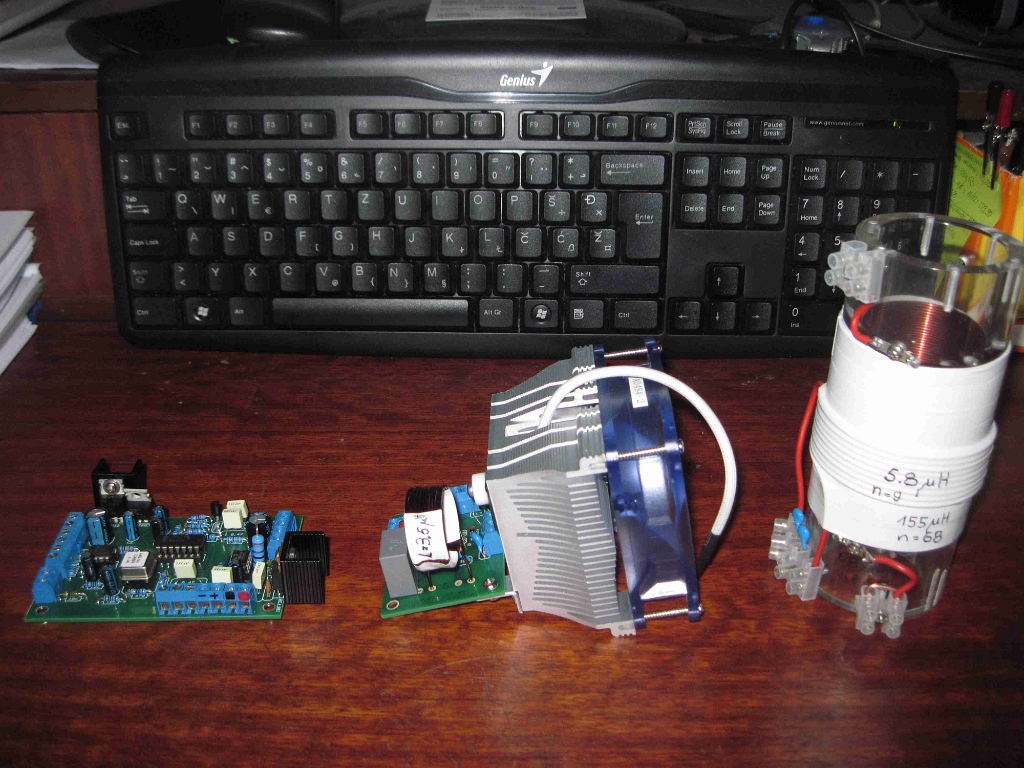

A completely home made system.

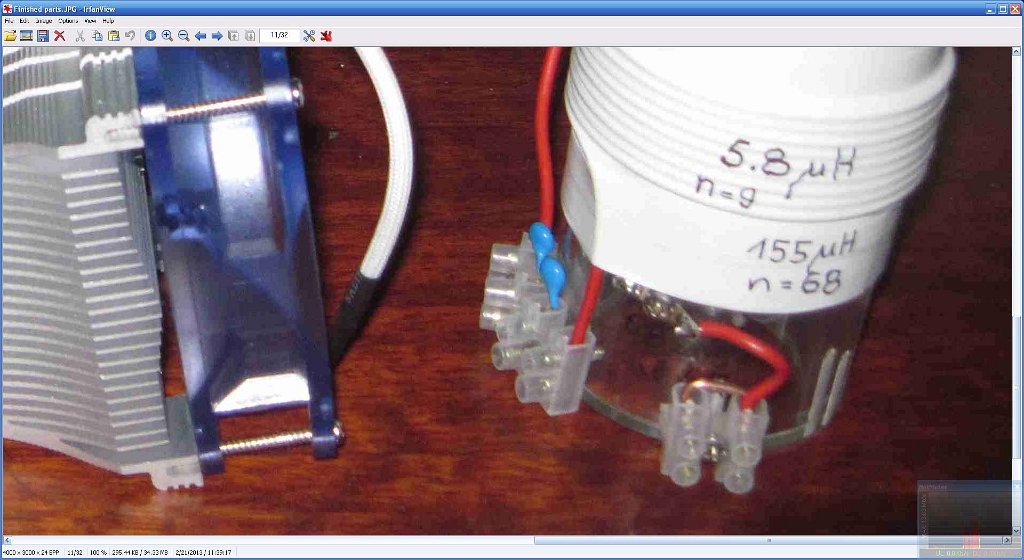

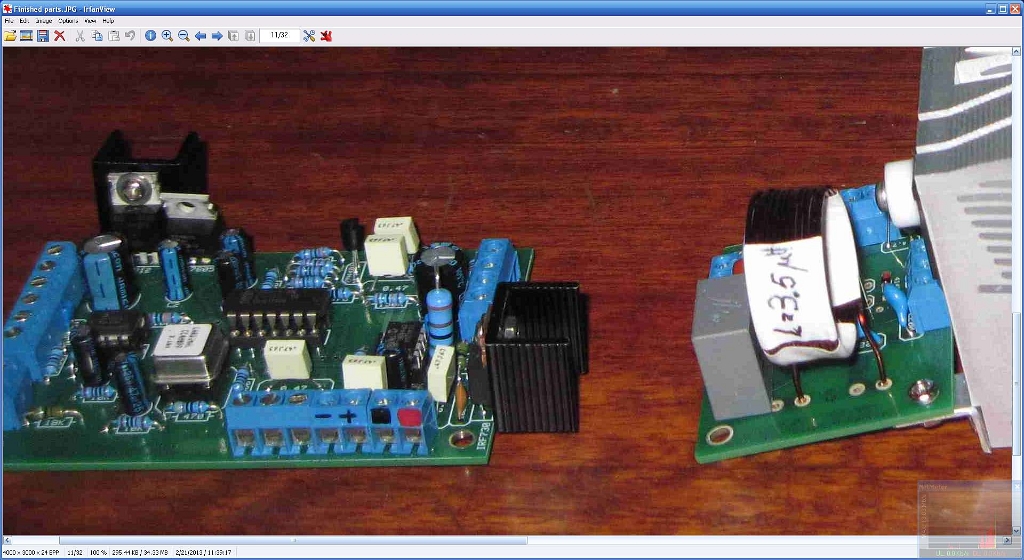

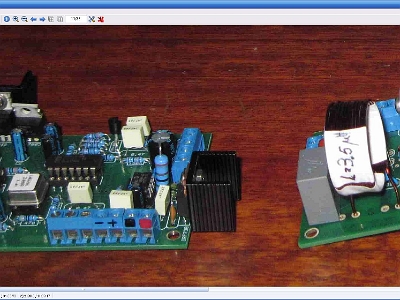

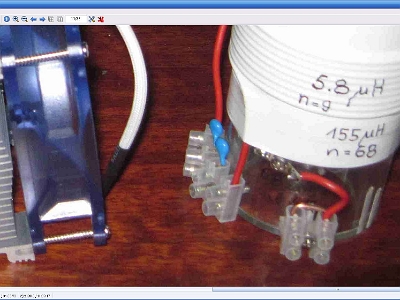

This system was built on blank SSQ-2F and PA1 circuit boards from data in the instruction manuals. Locally sourced components were used, and the LC31 coupler was hand-made.
1
2
3
